In December 1975, the remaining plant machinery, material stocks, and trading name were sold off to Steve Dickinson, who reconstituted the independent C. Wheatstone & Co. and resumed manufacturing traditional concertinas of high quality.
Description of Wheatstone Concertina #35074
The unusual Wheatstone #35074 was received from the seller within an apparently original square, hide case labeled with Wheatstone & Co.’s address in West Street (as current from 1897). Figure 1 is a photograph showing the right side of the concertina.
The instrument is a large twelve-sided concertina, ten inches (25.4 cm) in diameter, with raised nickel-plated metal ends having Wheatstone-pattern fretwork with red muslin ("gauze") lining.
Labels on both ends are the typical two-rivet, scalloped-edge metal badges seen on Wheatstone instruments of the period. That on the right-hand end is embossed "Manufacturers C. Wheatstone & Co. London." That on the left-hand end is embossed "Wheatstone" above and "Made in England" below a rectangular serial number cartouche, in which is stamped "35074." The inset areas into which these scalloped end-labels were riveted show no trace of any alteration of a previous Lachenal-style label cartouche, nor any welding-in of a new label recess area.
The end-plates are German silver (an alloy of copper, nickel, and zinc) set into the black-stained wooden end-frames, and show areas of severe palm-wear, revealing two levels of nickel plating beneath the final plating which is of polished nickel. Similar wear is visible where fingernails would strike near almost all of the finger studs, all of which demonstrates that the instrument was played seriously for some period of time. The six screws per end (located in alternate edges) have gently-domed heads with a flattish level of countersinking.
The eight-fold leather bellows are of rough-grained black leather, in excellent condition. The instrument retains well-used original thick-hide leather hand-straps, deeply stamped with "C. Wheatstone & Co. Manufacturers London," and still with some original gilding to the lettering. The straps are secured to the hand-bars with two screws through rectangular blocks of pearl, and each has the usual nickel Wheatstone adjustment buckle to the lower end of the hand-bar.
The inner face of each action board is stamped with an inked rubber-stamp mark "Wheatstone 35074," and both the top-most inner face of each end’s bellows frame and the top-most outer reed chambers of each reed-pan are stamped with an inked and impressed mark "74." It was standard Wheatstone practice to so mark the parts of each concertina with the final two digits of the instrument’s serial number. The center hole of each reed-pan is markedly offset from center, and the larger, deeper reeds on the inner faces of the reed pans are noticeably inset toward the center of their pan.
Wheatstone & Co. ‘Edeophones’
Comments about this instrument made in internet discussion groups at the time of its sale proposed three opinions about how such a "Wheatstone Edeophone" might have come to exist: (1) that the instrument may have been completed at Lachenal’s before it went out of business, then "re-badged" with Wheatstone labels for sale; (2) that the instrument had been made by Lachenal but later rebuilt by Wheatstone with ends altered to include Wheatstone labels; and (3) that the instrument was made by Wheatstone, but from Lachenal parts acquired at the final sale. All these comments assumed that the instrument or its major parts had been in those barrows that Tommy Williams so picturesquely recalled as having been taken around to Wheatstone’s.
Yet all these theories were proved to be untrue when Steve Dickinson carried out a detailed examination of the instrument at the workshops of the current C. Wheatstone & Co. Mr. Dickinson still has concertina-making tools, jigs, and machinery from the Wheatstone workshops of the middle and late 1930s (and earlier) which he acquired with the company. His knowledge of these, gained in part in the 1970s from Sid Watkins, the last surviving Wheatstone craftsman from the pre-war period, indicates that the entire instrument was made within the Wheatstone workshops.
The historic Wheatstone jigs still in use enable six-, eight- (Æola), and twelve-sided (Edeophone) concertina ends and action boards to be constructed on a single set of tools. The action board and reed-pan routing tools have three clearly-numbered settings on the jig, for six-, eight-, and twelve-sided instruments. Moreover, an examination of the reed-frame fly-press tools used for 1930s Wheatstone reeds shows that they were the same tools used to make the reeds for Wheatstone #35074.
Mr. Dickinson further observes that (1) the inked rubber-stamped "Wheatstone 35074" on the action-boards was created with a rubber stamp still in his workshop equipment collection; (2) the grainy leather bellows are undoubtedly Wheatstone, being of the poor quality that the firm was limited to in the late 1930s; (3) the inset metal ends are turned over and screwed under the rim of the end-frames, exactly as in standard Wheatstone practice; and (4) the red muslin lining is not only of Wheatstone origin, but original stocks of it are still available for current production. 9
Information from the Concertina Production Ledgers
To confirm the date of manufacture, we consulted the concertina production ledgers from the old Wheatstone & Co., these now preserved at the Horniman Museum. 10

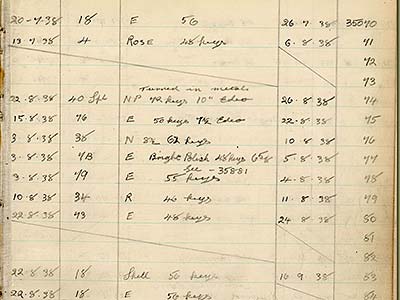

The entry for this instrument is shown in Figure 2. It reads:
22.8.38 40Spl NP Turned in Metals 72 keys 10" Edeo 26.8.38 35074
This means that work on the instrument commenced on August 22nd, 1938. It is a model 40 "Special," with Nickel-Plated metal ends made in the Wheatstone turned-in style (as opposed to "screwed-on metals" [#34756] or "capped metals" [#34523]). It has seventy-two keys (including the air valve), measures ten inches across, and is of "Edeo" shape. The instrument was completed on August 26th, 1938, with the serial number 35074. The fingering system is noted only in the model number; the ordinary model 40 is a superior-quality seventy-two-key Maccann duet, and "Spl" must be intended to refer to the unique fingering arrangement.
To our surprise, another instrument #35075, whose entry can be seen on the very next line of Figure 2, was also marked "Edeo." In fact, there are at least fourteen more twelve-sided Wheatstone concertinas recorded in the production ledgers. The earliest are a set of three, and then another similar instrument five months later:
These are Anglo concertinas in ebony (bright polish) with forty keys, and have the notation "12 sides". Note that all four date from before Lachenal was absorbed in 1935.
Next, two years later, are a pair of forty-eight-key ebony English concertinas from March 1936, and then three single instruments, two ebony Crane duets and another ebony English. The first pair have the notation "12 sides" and also "Edeo," but the next three are just "Edeo":
Thus the name "Edeo" appears in the ledgers only after Lachenal had been absorbed (1935).
Then comes our #35074 in Nickel Plate, the only instrument with metal ends and the only one with its "Special" duet fingering, and a second instrument, an ebony Crane duet, made just a few days earlier:
Then there is one more instrument a year later, just before the war, and finally four instruments made during the war, all of them ebony Crane duets:
This, then, makes a total of sixteen twelve-sided Wheatstones, all made between the middle of 1934 and late 1941. 11
So it is clear that, well before 1938, Wheatstone had tooled up to make Edeophone-style concertinas, to their own specifications and with standard Wheatstone components, and that instrument #35074 is one example out of at least sixteen. We might reasonably expect to find more of the twelve-sided Wheatstones listed above. And perhaps the occasional stories about "re-badged Lachenals" which have circulated in concertina lore for years in fact refer to these newly-identified twelve-sided Wheatstones.
The Fingering System of Wheatstone #35074

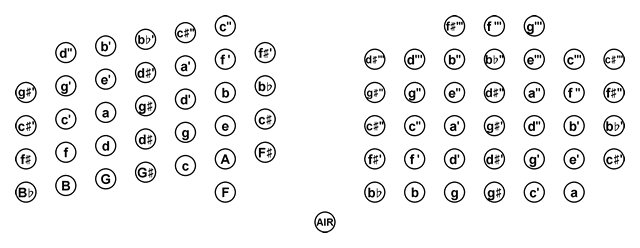

The natural notes of the C-major scale are all located in four columns, with three additional columns of sharps and flats--at the left, at the right, and in the middle (with a few non-conforming keys at the top).
As with the other features of this concertina, there is no doubt that the instrument was manufactured in its current layout. The arrangement of studs differs from a standard Maccann arrangement not only in having an extra column, but also in that the angle of offset between columns is different (in fact, different on the two sides). The metal fretwork is neatly designed around all seven columns of studs, outlining each column and stud, and was clearly designed and made for this instrument.
The metal finger-studs of #35074 are of the usual Wheatstone type, domed and five millimeters in diameter. There are thirty-four on the left side, and thirty-eight (including the air valve) on the right side. On the left side, corresponding studs across the columns run straight at a uniform angle (fifteen degrees) from the hand-bar from left to right, while on the right side, they run straight and parallel to the hand-bar, both arrangements different from the less-regular Maccann-system layout of studs. They are spaced horizontally (from column to column) on approximately fourteen-millimeter centers, and spaced vertically (within a column) on approximately ten-millimeter centers.
A notable feature of #35074 is that it has more than an octave and a half of overlapping range between its two sides (the left side has d’’, a ninth above middle c’ as its highest note; the right side has g below middle c’ as its lowest note). Thus it stands in contrast with standard 1938-vintage Wheatstone Maccann duets, which had only an octave overlap or less, except for the very large 80-key instruments.
Duets in the Wheatstone Patent of 1861
Among the features of #35074 that caught our eye are the four columns of natural notes that are very much like the four columns of natural notes on the two sides--taken together--of an English concertina. 13 This similarity reminded us of the duet fingering arrangements based on the English system in early Wheatstone patents. 14 It was Wheatstone’s 1844 patent that codified the familiar English arrangement itself, in which each end has two inner columns of natural notes flanked by two outer columns of accidentals. The natural scale alternates between the two ends, a feature intended to allow both hands to contribute to playing a scale or scale-like line. There is a sharp or flat next to every natural note, providing a total of fourteen notes per octave; in addition, the Wheatstone concertinas were from the beginning tuned in a mean-tone tuning, in which D-sharp and E-flat were tuned differently, as were G-sharp and A-flat.
Among several related fingering systems, this same 1844 patent also describes an eight-column duet system variant which consists--literally--of both ends of an English placed next to each other on each end of the duet. The four columns of studs from the left and the four columns from the right were set side by side on each end, putting the natural notes in columns 2 and 3 and in columns 6 and 7, with the remaining four columns (1, 4, 5, and 8) devoted to accidentals. This seems to have been a purely theoretical extension of the basic English-system patent, and we don’t know of any actual instruments built this way.
The 1861 patent , however, introduced a further development of this system, compressing the number of columns to seven. The compression was made possible by a change from mean-tone tuning to equal-tempered tuning (a change which took place on most Wheatstone concertinas beginning in the early 1860s). Now it was enough to provide a single note for D-sharp/E-flat and for G-sharp/A-flat, twelve notes per octave, by identifying enharmonic equivalents in the equal-tempered scale. 15 That permitted the elision of the two central columns of accidentals into a single column, yielding a seven-column duet system with natural notes in columns 2 and 3 and 5 and 6, accidentals in columns 1, 4, and 7.

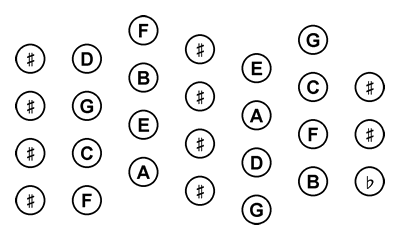

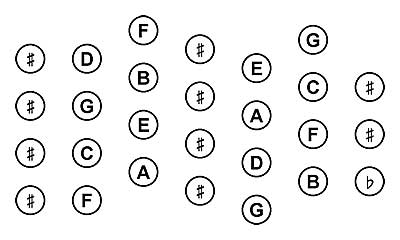

Figure 4 (redrawn from Fig. 29 of British Patent 2289 of 1861) shows the right side of a duet arrangement of this kind. Comparing this with the right side of Wheatstone #35074 (Figure 3) shows that the 1938 instrument is indeed a realization of the 1861 duet system. We do not know of any other instrument made with this fingering system.
The arrangement of notes on this duet system directly inherits the principal advantage of the related English fingering system: just as the alternation of notes between right and left ends spreads the work to both hands on an English concertina, so the alternation of notes between columns 2-3 and columns 5-6 spreads the work to all the fingers in the related duet arrangement. For instance, on the right side the ascending natural scale falls under fingers 1, 3, 2, 4, 1, 3, 2, 4, and so on. This same sequence had been true for the earliest Wheatstone duet prototypes of the 1840s, and was also true of the central range on Maccann-system duets introduced in 1884.
Motivation for #35074
We have established who built the twelve-sided concertina, when and where it was built, and what the source was for its keyboard arrangement, but all this fails to explain why Wheatstone & Co. would have built an example of the 1861 duet system in 1938, more than seventy-five years later, much less why it was built in the Edeophone twelve-sided shape.
Steve Dickinson has proposed to us 16 that #35074 may have been built to fill a special order from a customer seeking to match or replace an instrument made earlier (perhaps years earlier) by Lachenal. We agree that is the most likely motivation, because there seems to be no strong reason other than a specific custom order for Wheatstone to make any instrument in the Edeophone shape, whether experimental or otherwise. This explanation would further imply that there could have been a similar seven-column duet instrument built earlier by Lachenal, which might yet come to light. Of course it is impossible to rule out the possibility that #35074 was made as an internal development prototype based on the 1861 patent, with its twelve-sided shape serving as some other sort of practical experiment or for identification (or just because #35075 was being made as a customer’s special order with twelve sides at the same time).
If the former supposition is true, however, we would love to have observed a concertinist, a former Lachenal customer, coming into Wheatstone & Co. in 1938 and placing an order for a duet to be based on the Wheatstone patent of 1861, claiming warmly that the original Wheatstone design was far superior to the later Maccann system. Such an order would hardly have failed to excite some interest.
Possible Influences After 1938
The experience of building (and playing or perhaps seeing a customer play) concertina #35074 may have had some influence on the subsequent evolution of Wheatstone duets.
At the end of 1950, when Wheatstone was just emerging from its hibernation of 1939-1949, an article written by Kenneth V. Chidley appeared in "The Concertina," a section in the World Accordion Review. Chidley was at that time the Technical Advisor to the publication and a director of Wheatstone & Co. In the article, he described a new fingering system for Wheatstone duets (the "Chidley system"). 17
Like the Maccann system, his design had six columns, but with each column containing a strict alternation of exactly two notes of the twelve-note scale (for example, column 3 on the right side contained the notes a, e’, a’, e’’, a’’, e’’’, a’’’ ). To a Maccann player this resembles the Maccann arrangement with all the "irregularities" removed, and so Chidley-system instruments are now often referred to as "Chidley-Variant Maccanns" (and they did replace the Maccann-system instruments in the Wheatstone catalog). But Chidley’s discussion in this article suggests that his thought process was not to modify the Maccann design, but to go back to earlier Wheatstone designs and to extend them in a better way than Maccann had done. Chidley particularly singles out for mention William Wheatstone’s otherwise-obscure seven-column design discussed above from the patent of 1861 (and from our instrument #35074, though unmentioned), and he adopts a feature seen in #35074, the deeper overlap of one and a half octaves between the two sides.
This new fingering system in fact began to be manufactured by Wheatstone just a few months later. In the Wheatstone production ledgers, instruments with the Chidley-system fingering are identified as "uniform keyboard" or "uniform fingering." The first such instrument was #35736, of 3 April 1951.
So it is possible that Kenneth Chidley’s interest in a duet system based on early Wheatstone designs had been strengthened or even provoked by the making of #35074 in 1938. This would be consistent with the introduction of the Chidley-system instruments in 1951, the earliest opportunity for new commercial production after the disruptions caused by the war in the intervening dozen years. 18
